Run four or eight independently programmed UV LED heads from one compact controller. Up to 11,000 mW/cm² peak intensity, 365–470 nm, touchscreen control and full PLC integration for automated production lines.
Both models share the same controller, touchscreen and light heads. Choose the number of heads your process needs.
Full system specifications for the Incure L1344™ and L2688™ multi-head UV LED spot curing systems.
| L1344™ / L2688™ UV LED Multi-Head Spot Curing Systems | ||
|---|---|---|
| Configuration | L1344™ | L2688™ |
| Image |  | |
| Type of Lamp | UV LED spot, multi-head | |
| Number of LED Heads | 4 | 8 |
| Head Control | Each head independently controlled and set to its own working mode | |
| Peak UV Intensity | Up to 11,000 mW/cm²** | |
| Peak Wavelengths | 365 / 385 / 395 / 405 / 450 / 470 nm (±10 nm) | |
| Intensity Control | 10–100% in 1% steps | |
| Exposure Timer | 0.1–999.9 s, or continuous | |
| Programs | Step and pulse modes · up to 99 stored programs | |
| Constant-Output Mode | Default below 80% output — irradiance held constant, unaffected by temperature | |
| Expected LED Life | >20,000 hours* · instant on/off, no warm-up or cool-down | |
| Display | Touchscreen — live temperature, status and time for every head; records LED working hours and temperature | |
| Protection | Fault alarm with automatic shut-down · key lock for settings | |
| PLC Inputs / Outputs | 4 head inputs · status outputs (start, stop, working, alarm) | 8 head inputs · status outputs (start, stop, working, alarm) |
| Serial Interface | RS-232 — program parameters, PC/PLC control, firmware updates | |
| Foot Switch / Sensor | One switch triggers 1–4 heads | One switch triggers 1–8 heads |
| Power Supply | Built in — no separate power supply required | |
| Housing | All-aluminium enclosed housing, suitable for clean rooms | |
| Head Cable | 3 m / 5 m / 10 m · rated >1,000,000 bends at R30 mm | |
| Controller Dimensions | 185 × 140 × 130 mm (L × W × H) | |
| Controller Weight | 1,500 g | |
* LED life is estimated for a specific operating environment and conditions of use. ** Measured with a 3 mm focusing lens at 8 mm working distance, 365 nm, 100% output.
Quartz LEDs, aviation-grade heat sinks and quartz optical lenses. Mix head types on the same controller.

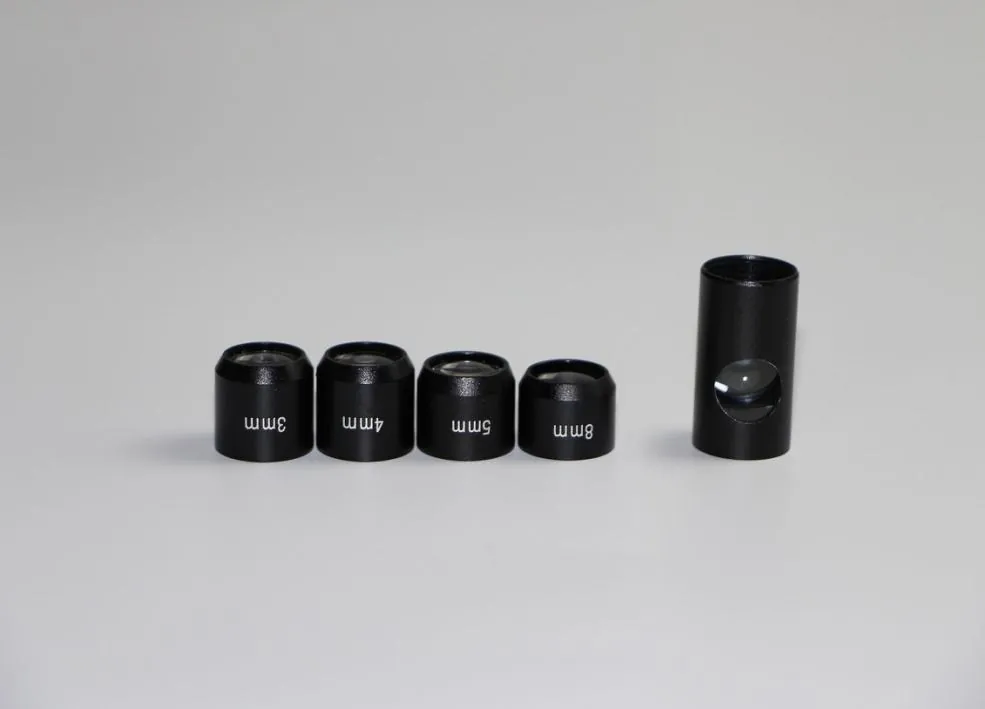

9 standard lenses with 3–15 mm spots, including a side-view lens. Custom lenses and fibre optics on request.
| Part No. | Spot Size | Working Distance | Optical Power |
|---|---|---|---|
| L2688-L03 | 3 mm | 8 mm | 11 W/cm² |
| L2688-L04 | 4 mm | 7 mm | 10 W/cm² |
| L2688-L05 | 5 mm | 10 mm | 6.5 W/cm² |
| L2688-L06 | 6 mm | 12 mm | 5.5 W/cm² |
| L2688-L08 | 8 mm | 19 mm | 3.5 W/cm² |
| L2688-L10 | 10 mm | 25 mm | 2.2 W/cm² |
| L2688-L12 | 12 mm | 22 mm | 1.8 W/cm² |
| L2688-L15 | 15 mm | 39 mm | 0.2 W/cm² |
| L2688-L08SV | 8 mm (side view) | 10 mm | 0.9 W/cm² |
Optical power measured at the stated working distance at 100% output. Fibre-optic heads: diameter and length can be customised.
Wavelength, head type, lens and cable length are confirmed at order — contact us if you need a specific combination.
| MODEL | IMAGE | DESCRIPTION | KEY FEATURES | TDS | CONFIGURE & ORDER |
|---|---|---|---|---|---|
3–4 WEEKS ARO L1344™ L1344-[wavelength] 4-head system |
|

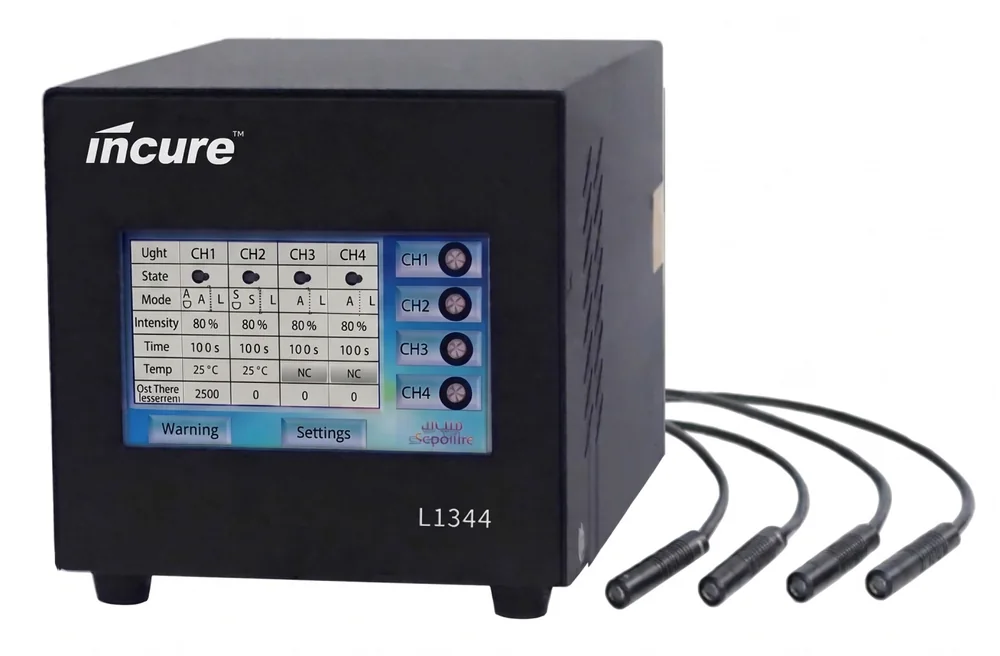

Incure L1344™ drives four independently programmed UV LED heads from one touchscreen controller, delivering up to 11,000 mW/cm² peak intensity across 365–470 nm. Built-in power supply, PLC I/O and RS-232. |
|
TDSBrochure |
WAVELENGTH
365nm385nm395nm405nm450nm470nm
Request a Quote
|
3–4 WEEKS ARO L2688™ L2688-[wavelength] 8-head system |
|

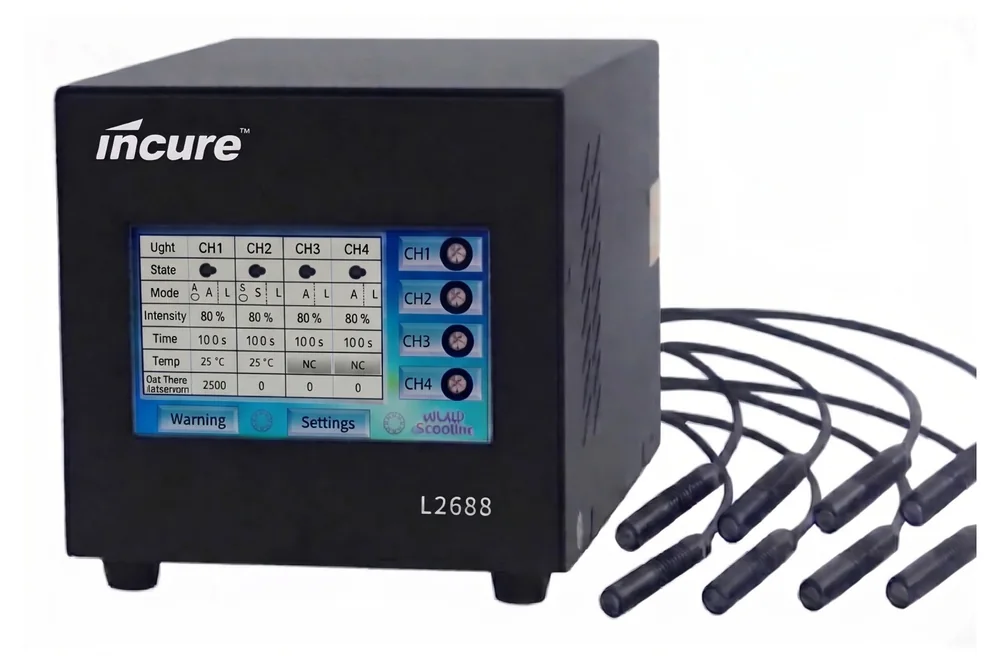

Incure L2688™ drives eight independently programmed UV LED heads from one touchscreen controller, delivering up to 11,000 mW/cm² peak intensity across 365–470 nm. Built for fully automated, multi-point production lines. |
|
TDSBrochure |
WAVELENGTH
365nm385nm395nm405nm450nm470nm
Request a Quote
|
Bonding, fixing and assembly of components, sensors and connectors.
Lens bonding, fibre and ferrule assembly, and optical alignment.
Multi-point bonding of catheters, needles and sensor assemblies.
PLC-triggered heads with status outputs for inline and robotic cells.
High-intensity UV for fast, deep cure of UV-curable materials.
Fluorescence reactions in material testing, image processing and lab work.
No warm-up or cool-down. Switch as often as the process needs.
Safe for heat-sensitive, low-temperature materials.
Cleaner, safer operation with low energy use.
No lamp changes and minimal maintenance cost.
The number of LED heads. The L1344™ drives four heads and the L2688™ drives eight. Both use the same controller, touchscreen, heads and lenses.
Yes. Every head has its own mode, intensity (10–100% in 1% steps) and exposure time (0.1–999.9 s or continuous). Step and pulse modes support up to 99 stored programs.
365, 385, 395, 405, 450 and 470 nm (±10 nm). The wavelength is chosen at order.
Each head has a PLC input, and status outputs report start, stop, working and alarm. RS-232 lets a PC or PLC set parameters and transfer programs. A foot switch or sensor can trigger any group of heads.

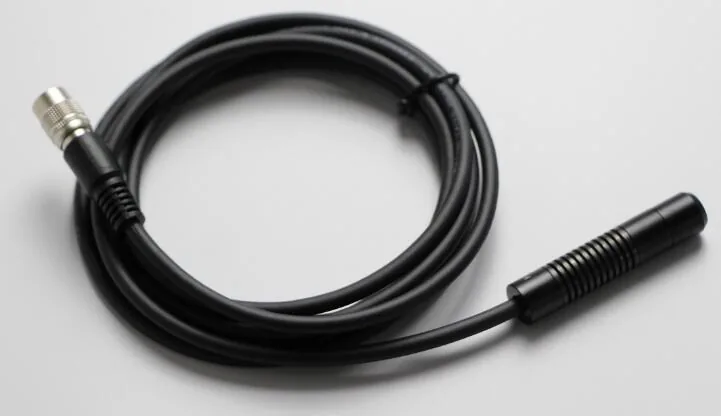

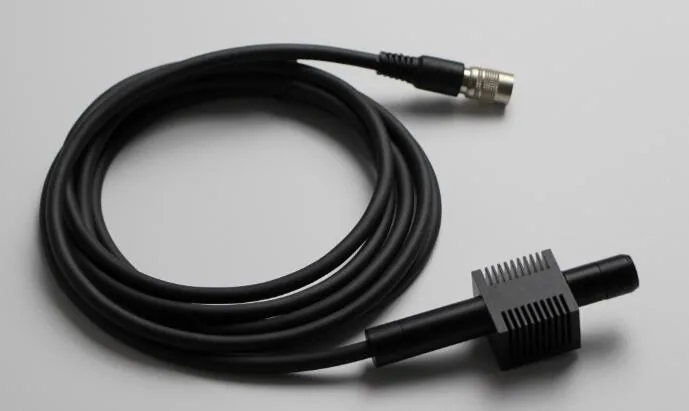

The Compact Head suits most timed exposures. For long or continuous exposure, choose the Fan-Cooled Head.
Yes. The controller has an all-aluminium enclosed housing suitable for clean workshops.
Tell us your wavelength, number of heads, head type and lens. Our team will confirm availability and lead time.
