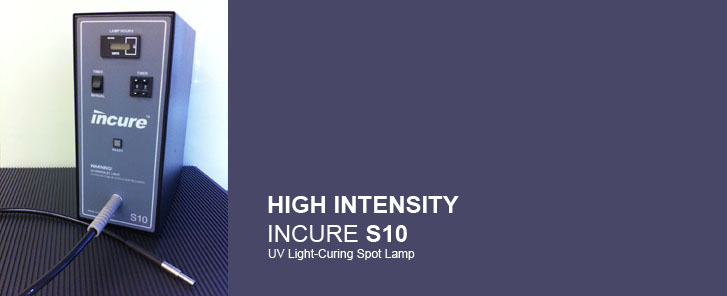

S10  High Intensity UV/Visible Light-Curing Spot Lamp

The S10 is a high intensity compact light curing system. This light curing spot lamp is designed with low cost of ownership in mind, with its vertically mounted long-life mercury lamp, separately replaceable elliptical reflector, and filtered input long-life lightguide. The S10’s easy to use exposure time controls and foot pedal activation make operating the unit a snap. The uv system weighs in at less than 7.5 pounds, and its 10 x 5 inch footprint is the smallest in its class.
Download Bulletin for S10 UV/Visible Light Curing Spot Lamp
Download Specification for UV Short Arc Mercury Lamp - Lamp Spectral Distribution
Download Bulletin for S10 UV Spot Lamp - Spot Size vs. Distance

        Model S10
        Order Number 290002
        Power Supply
        AC Input Voltage 90 to 265VAC
        AC Input Current 2A maximum
        Source Input Frequency 47 Hz to 63 Hz
        Lamp Power Regulation ± 2%
        Fan / Auxiliary Voltage 24V
        Lamp Type 100 Watt mercury
        Lamp Voltage 30VDC ± 3V
        Burning Position Vertical
        Radiation Flux 12.6 Watts
        Warm-up Time 1 to 2 minutes
        Cooling time before Restart 2 to 5 minutes typical
        Output Intensity (typical) >10,000 mW/cm2
        Lamp Life 1000+ hours typical
        Operating Temperature +10 °C to +40 °C (+50 °F to +104 °F)
        Storage Temperature 0 °C to +60 °C (+32 °F to +140 °F)
        Relative Humidity 30 to 75% operating, 10 to 100% storage
        Cooling DC fan, forced air
        Over-temp shutdown 65 °C (internal)
        L x W x H (inches) 10.73” x 4.95” x 11.62”
        Weight (lbs.) 7.5 Pounds
