The Ultimate Guide to Dispensing Valves: Precision Engineering for Modern Manufacturing

In the world of high-precision manufacturing, the difference between a perfect product and a rejected one often comes down to a single drop of fluid. Whether it is the adhesive holding a smartphone screen in place, the lubricant inside a medical syringe, or the solder paste on a complex circuit board, the accuracy of fluid delivery is paramount. At the heart of this accuracy are dispensing valves. These sophisticated components are the gatekeepers of fluid movement, ensuring that the right amount of material is applied at the right time, every single time.

As industries move toward greater automation and miniaturization, the demand for advanced dispensing valves has skyrocketed. This comprehensive guide explores the technology, types, applications, and selection criteria for dispensing valves, providing you with the insights needed to optimize your production line.

What Are Dispensing Valves?

Dispensing valves are mechanical or electromechanical devices designed to control the flow of fluids in an automated or semi-automated system. Unlike simple manual applicators, these valves are integrated into robotic arms or stationary platforms and are controlled by sophisticated software to achieve micro-level precision. They handle a vast array of materials, from water-thin solvents to thick, abrasive pastes.

The primary function of a dispensing valve is to provide “repeatability.” In an industrial context, this means the valve must be able to dispense 10,000 deposits of 0.05ml with a variance of less than 1%. This level of control minimizes material waste, reduces cleanup time, and significantly improves the structural integrity of the finished product.

The Core Mechanics of Fluid Dispensing

To understand how dispensing valves work, one must understand the relationship between pressure, time, and orifice size. Most dispensing systems rely on a pressurized reservoir that pushes fluid toward the valve. The valve then acts as a precision switch. When the controller sends a signal, the valve opens for a specific duration (measured in milliseconds), allowing the fluid to pass through a nozzle or tip.

However, modern dispensing valves go beyond simple “on/off” mechanics. Many utilize internal pistons, diaphragms, or augers to physically displace the fluid, providing a more volumetric approach to dispensing that is less affected by changes in fluid viscosity or reservoir pressure.

Viscosity: The Critical Factor

The choice of a dispensing valve is heavily dictated by the viscosity of the fluid. Viscosity is a measure of a fluid’s resistance to flow, typically measured in Centipoise (cps). For context:

  • Water: 1 cps
  • Motor Oil: 200–500 cps
  • Honey: 2,000–10,000 cps
  • Peanut Butter: 250,000 cps

Low-viscosity fluids require valves with tight seals to prevent dripping, while high-viscosity fluids require high-pressure valves capable of forcing thick material through narrow openings.

Common Types of Dispensing Valves

No single valve is perfect for every application. Engineers must choose from several distinct designs based on the material properties and the required deposit size.

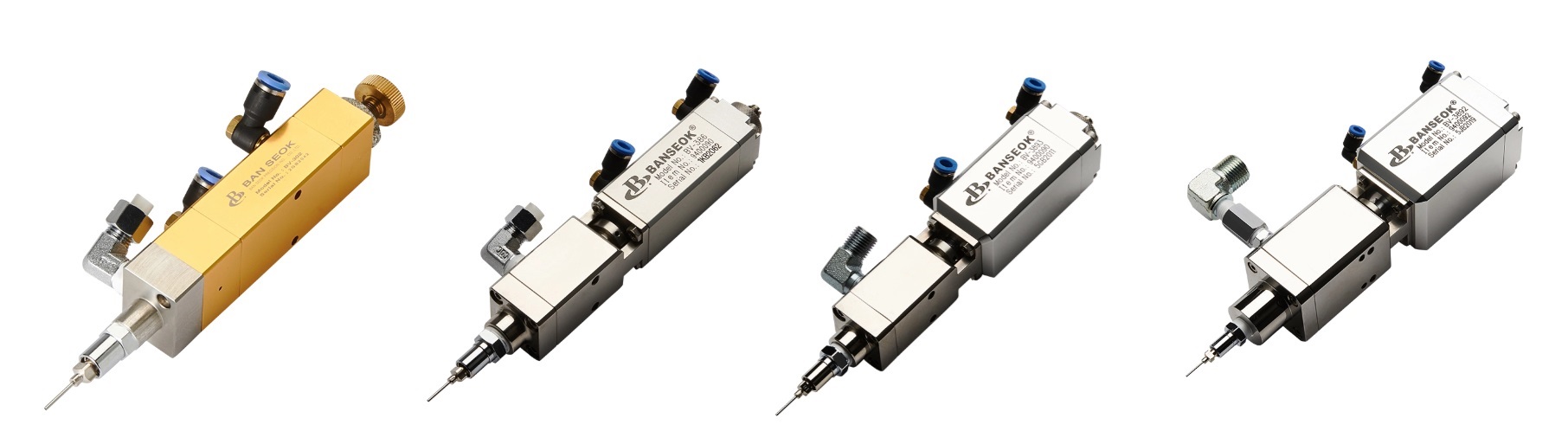

1. Needle Valves

Needle valves are among the most common dispensing valves used for low-to-medium viscosity fluids. They utilize a stainless steel needle that seats into a specialized housing. When air pressure is applied to the valve’s actuator, the needle lifts, allowing fluid to flow. When the pressure is released, a spring forces the needle back into the seat, cutting off the flow.

Best for: Micro-dots, beads, and lines of adhesives, inks, and oils. They are highly adjustable and offer excellent control for very small deposits.

2. Diaphragm Valves

Diaphragm valves use a flexible membrane (usually made of Teflon or UHMW polyethylene) to regulate flow. The diaphragm acts as a barrier between the wetted parts and the internal moving components of the valve. This makes them ideal for volatile or reactive fluids.

Best for: Cyanoacrylates (super glues), solvents, and anaerobic resins. Because the fluid is isolated, there is no risk of the material curing inside the valve’s mechanical housing.

3. Spool Valves

Spool valves are heavy-duty workhorses designed for high-viscosity materials. They feature a “snuff-back” or “suck-back” action. As the valve closes, the internal spool moves upward, creating a slight vacuum that pulls the fluid back into the nozzle. This prevents “stringing” or “tailing” of thick materials.

Best for: Silicones, greases, and sealants. They are essential for applications where a clean cut-off is required for thick pastes.

4. Auger Valves (Screw Valves)

Auger valves use a rotating screw to move material forward. This is a volumetric dispensing method, meaning the amount of material dispensed is determined by the number of rotations of the screw rather than air pressure. This makes them incredibly accurate for materials that contain fillers or have inconsistent viscosities.

Best for: Solder pastes, silver epoxies, and abrasive thermal interface materials (TIMs).

5. Jetting Valves

Jetting is a non-contact dispensing technology. Instead of the nozzle touching the substrate, the valve “shoots” droplets of fluid from a distance. Jetting valves can operate at incredibly high speeds, often hundreds of cycles per second.

Best for: High-speed electronics assembly, underfill, and complex geometries where a needle cannot reach. [Contact Our Team](https://shop.blazeasia.com/pages/contact) to learn more about integrating jetting technology into your workflow.

Key Components of a Complete Dispensing System

A dispensing valve does not operate in isolation. It is part of a larger ecosystem designed to maintain fluid stability and precision.

The Controller

The controller is the “brain” of the operation. It regulates the air pressure sent to the valve and the reservoir, and it dictates the timing of the valve opening. Modern digital controllers allow for “recipe” storage, where different parameters can be saved for different parts on the production line.

Fluid Reservoirs

Fluids are typically stored in syringes (for small volumes) or pressure tanks (for large volumes). Maintaining consistent pressure in the reservoir is vital; if the pressure drops as the tank empties, the dispense volume may change, leading to defects.

Dispensing Tips and Nozzles

The tip is the final point of contact for the fluid. Tips come in various gauges, lengths, and materials (such as stainless steel, plastic, or ceramic). Choosing the right tip gauge is a balancing act: a tip that is too small will restrict flow and cause backpressure, while a tip that is too large will sacrifice precision.

Selecting the Right Dispensing Valve: A Step-by-Step Approach

Choosing the wrong valve can lead to production downtime, wasted material, and high maintenance costs. When selecting dispensing valves, consider the following factors:

Step 1: Analyze Fluid Chemistry

Is the fluid corrosive? Does it cure when exposed to moisture (like many urethanes)? Is it light-sensitive? For example, if you are working with UV-cure adhesives, you must use amber-tinted or opaque fluid lines and valve components to prevent the material from hardening inside the system.

Step 2: Determine Viscosity and Flow Rate

Measure the viscosity of your fluid at the operating temperature. If the fluid is “thixotropic” (meaning its viscosity changes when it is moved or shaken), you may need an auger valve to maintain consistency. Calculate the required flow rate to ensure the valve can keep up with your production cycle time.

Step 3: Define Deposit Size and Tolerance

Are you dispensing a 0.1mm dot or a 10mm bead? High-precision applications usually require needle or jetting valves. If your tolerances are loose, a simpler poppet or spool valve may be more cost-effective.

Step 4: Assess Abrasiveness

Some fluids, like thermal pastes, contain ceramic or metal particles. These particles act like sandpaper on the internal components of a valve. In these cases, you need valves with hardened components (like tungsten carbide seats) to prevent premature wear.

Applications Across Industries

Dispensing valves are the unsung heroes of the modern world. Their applications span nearly every sector of manufacturing.

Electronics and Semiconductors

In the electronics industry, components are getting smaller every day. Dispensing valves are used for “underfill,” a process where epoxy is dispensed around a chip to provide structural support and protect against thermal expansion. They are also used for conformal coating, which protects circuit boards from moisture and dust.

Automotive Manufacturing

Modern vehicles are held together by more than just bolts. Adhesives and sealants are used for windshield bonding, engine gasketing, and battery pack assembly in electric vehicles. Dispensing valves in the automotive sector must be robust enough to handle high volumes and large-scale beads.

Medical Device Assembly

The medical industry requires the highest level of cleanliness and precision. Valves are used to apply UV-cure adhesives to catheters, lubricants to syringe plungers, and reagents to diagnostic test strips. These valves must often meet strict regulatory standards for material compatibility.

Aerospace and Defense

In aerospace, weight and reliability are everything. Dispensing valves are used to apply precise amounts of specialized sealants that can withstand extreme temperature fluctuations and high-pressure environments. Any failure in the dispensing process could have catastrophic consequences.

Maintenance and Troubleshooting

To ensure the longevity of your dispensing valves, a rigorous maintenance schedule is required. Because these valves handle reactive chemicals, neglect can lead to permanent damage.

Preventative Maintenance

  • Daily Cleaning: Flush the valve with a compatible solvent at the end of each shift to prevent material buildup.
  • Seal Inspection: Check O-rings and seals for signs of wear or swelling. A compromised seal is the leading cause of “valve drool.”
  • Calibration: Regularly check the output volume against a precision scale to ensure the system hasn’t drifted out of spec.

Common Issues and Solutions

  • Dripping/Drooling: Usually caused by a worn valve seat or air trapped in the fluid. Bleed the system to remove air or replace the needle/seat.
  • Inconsistent Deposits: Often due to fluctuating reservoir pressure or changes in ambient temperature (which affects fluid viscosity). Consider using a fluid heater to keep viscosity constant.
  • Clogging: Caused by material curing in the tip. Ensure you are using the correct tip material and that the valve is properly shielded from light or moisture.

The Future of Dispensing Technology

The field of fluid dispensing is rapidly evolving. We are seeing a move away from pneumatic (air-driven) systems toward fully electric actuators. Electric valves offer even greater control, as the movement of the needle or piston can be programmed with micron-level accuracy without the variability of compressed air.

Furthermore, the integration of Artificial Intelligence and machine vision is changing the landscape. “Smart” dispensing systems can now use cameras to inspect a part in real-time, adjust the dispensing path to account for slight variations in part placement, and verify that the correct amount of fluid was deposited. This closed-loop feedback system virtually eliminates the possibility of defects.

Conclusion

Dispensing valves are a critical investment for any manufacturer looking to scale their production while maintaining high quality. By understanding the nuances of fluid dynamics and the specific strengths of different valve types—from the precision of a needle valve to the high-speed capabilities of a jetting valve—you can choose a solution that drives efficiency and reduces costs.

Whether you are working on the latest consumer electronics or heavy-duty automotive components, the right dispensing strategy is the foundation of a successful product. If you are unsure which technology is right for your specific fluid or application, expert guidance is always available to help you navigate the complexities of fluid management.

For more technical specifications or to discuss your specific dispensing challenges, [Contact Our Team](https://shop.blazeasia.com/pages/contact) today. Our engineers can help you select, install, and maintain the perfect dispensing system for your unique needs.
